Bottom Bracket

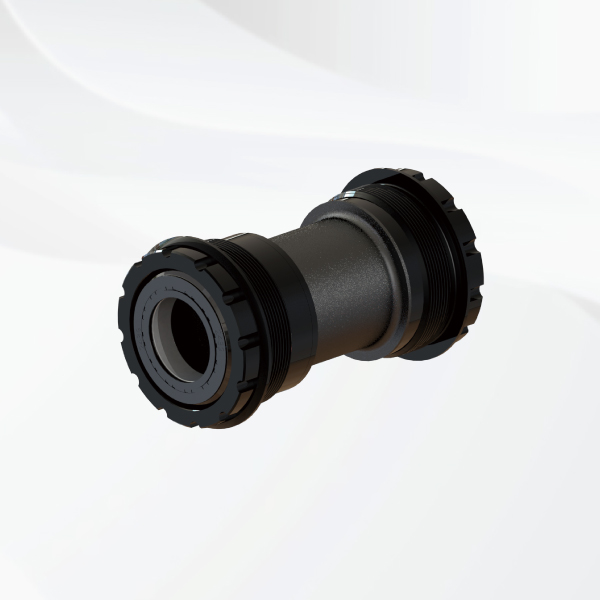

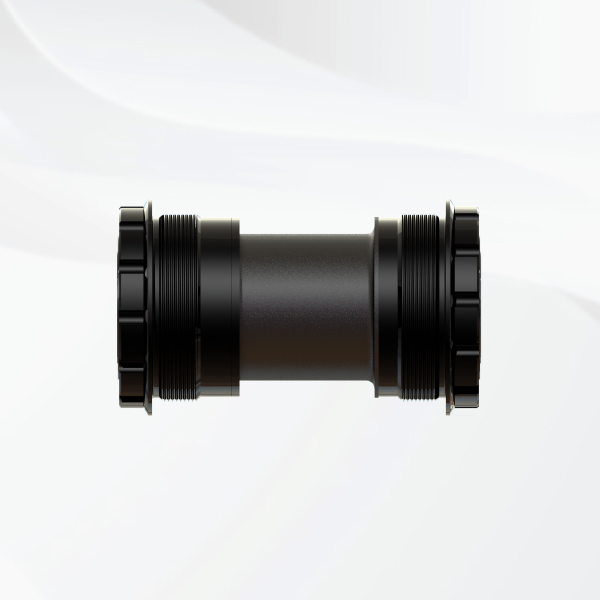

T47-Out Board

Features
GW current BB models are the mid to high-end BB for major AM and OE brands.
For increasing the BB product items, we would like to provide more option for customers.
The plastic bottom bracket is not only can provide the lower price to customers but also could reduce costs of frame and reduce the noise.
Add Inquiry (0)
Added to Inquiry list.


Model NO. T47-OUT-24 T47-OUT-29 T47-OUT-30
Spindle (mm) Ø24 Ø29 Ø30
BB Shell Width (mm) 73 68 68
Frame Type Out Board
BB Shell M47
Material Alloy / Plastic
Bearings Sealed Bearings
Color Black
Weight (g) 130 up
Dust Cap Material Alloy with NBR Rubber
Dust Cap Color Black
