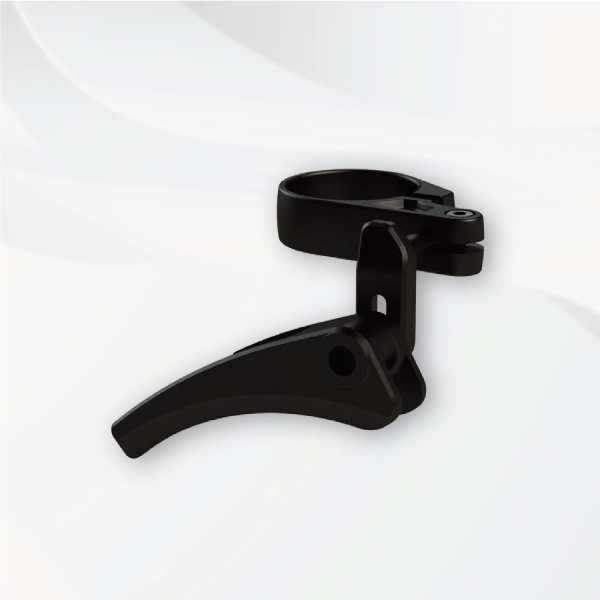

CG-ECO

Features: The Complete Bike Equipped Protection Device for ISO 4210-2; Tube and adjustable plate are one piece design; Allows upper guide adjustment of 10 mm; A combination of aesthetic and ISO 4210-2 design requirement; Shorter inner side plate to reduce interference with chain

Add Inquiry (0)

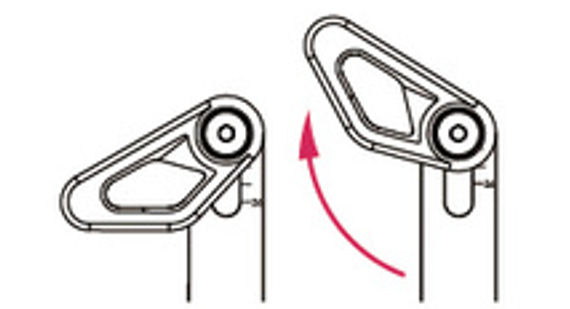

EASY CHAIN REMOVAL

Guide flips up to allow room to remove chain without removing guide

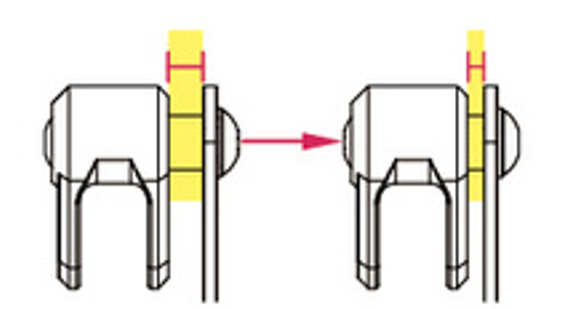

CHAIN LINE ADJUSTMENT

Tighten outer bolt to move the guide in and out

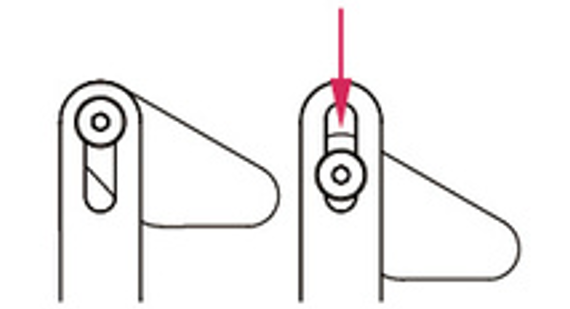

CHAINRING SIZE ADJUSTMENT

Loosen the inner bolt and slide to adjust for various chainring sizes

STEP 1：Select Guide Assembly

STEP 2：Select Back Plate

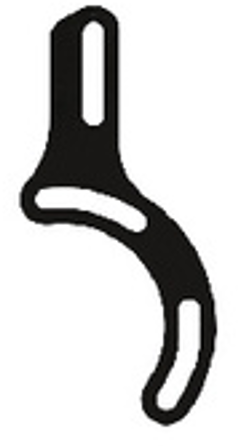

BOSSCH - GEN4

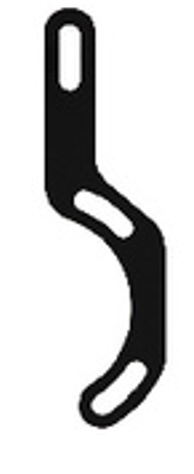

ISCG - 05

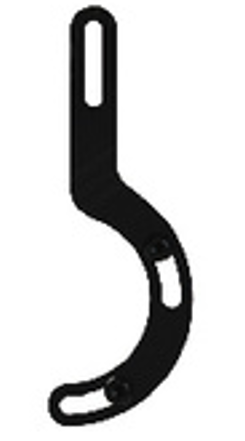

SHIMANO EP8 / E7000 / E8000

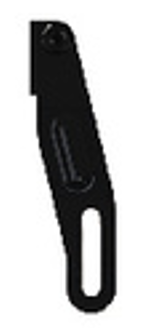

E - Type

Direct Mount

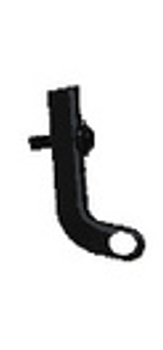

Braze - On

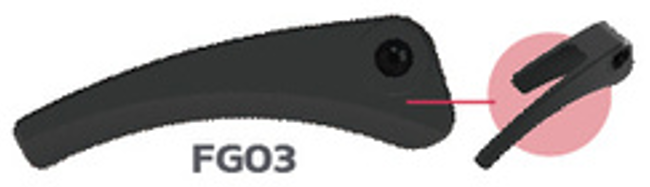

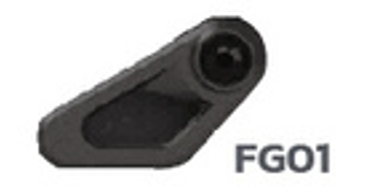

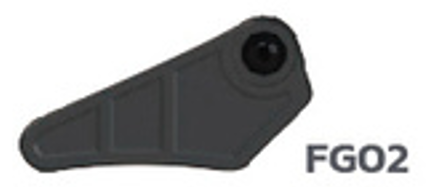

Guide Assembly	FG01 / FG02 / FG03
Mounting standard	BOSCH - GEN4	ISCG - 05	SHIMANO EP8 / E7000 / E8000	Direct Mount	E - type	Braze - On
Tooth Capacity	26T - 38T	26T - 38T	26T - 38T	26T - 38T	28T - 34T	38T - 50T
Chain Line (mm)	47 - 47.5	51 - 55	53 - 73	45 - 54	48 - 53	42 - 50
Weight(g)	50 - 59.4	47.5 - 56.4	55.8 - 80	43 - 47.1	24.9 - 37	30 - 41
Back Plate Material	Stainless Steel
Alloy Finish	Anodized Black / BB Black / Matte Black / UD Gloss / Logo
Color	Black
