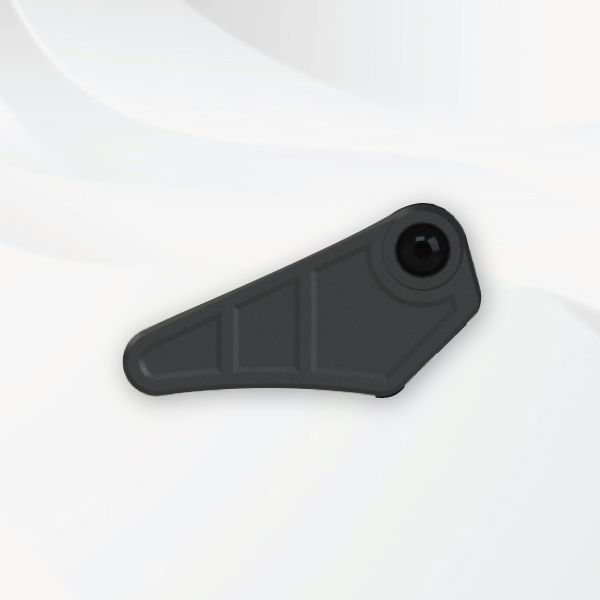

FG02

Features: The innovative top guide flips out of the way allowing for tool-free access to the chain and rings. A single hex wrench allows the guide to be adjusted to match the chainline. The guide can be adjusted to work with various chainring sizes. All of this is available at a very attractive price.

Add Inquiry (0)

EASY CHAIN REMOVAL

Guide flips up to allow room to remove chain without removing guide

CHAIN LINE ADJUSTMENT

Tighten outer bolt to move the guide in and out

CHAINRING SIZE ADJUSTMENT

Loosen the inner bolt and slide to adjust for various chainring sizes

STEP 1：Select Guide Assembly

STEP 2：Select Back Plate

BOSSCH - GEN4

ISCG - 05

SHIMANO EP8 / E7000 / E8000

Direct Mount

E - Type

Braze - On

Guide Assembly	FG01 / FG02 / FG03
Mounting standard	BOSCH - GEN4	ISCG - 05	SHIMANO EP8 / E7000 / E8000	Direct Mount	E - type	Braze - On
Tooth Capacity	26T - 38T	26T - 38T	26T - 38T	26T - 38T	28T - 34T	38T - 50T
Chain Line (mm)	47 - 47.5	51 - 55	53 - 73	45 - 54	48 - 53	42 - 50
Weight(g)	50 - 59.4	47.5 - 56.4	55.8 - 80	43 - 47.1	24.9 - 37	30 - 41
Back Plate Material	Stainless Steel
Alloy Finish	Anodized Black / BB Black / Matte Black / UD Gloss / Logo
Color	Black
