TB-B
- Features

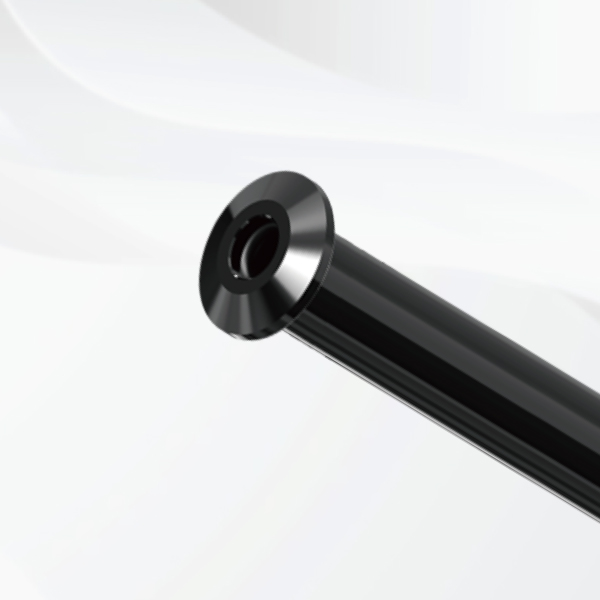

- TB-B features an Aero head design.
- Standard Tool Operation: Installed and removed using a standard hex wrench, providing a direct and secure connection.
- Comprehensive Specifications: Covers all standard dimensions. Customers only need to select the model and provide dimensional parameters.
| Model |
TB-01
Conical
 |
TB-A
Flat
 |
TB-B
Aero
 |
TB-C
Bevel
 |
|---|---|---|---|---|
| Axle Diameter | TA12 / TA15 | |||
| Outer Diameter(mm) | 19 (TA12) / 21 (TA15) | 20.5 (TA12) | ||
 |
||||
| A Nut to End Length(mm) | 110-230 / As Required | |||
| B Thread Length(mm) | 7-26 / As Required | |||
| C Thread Type | M12 / M15 Pitch 1.0 / 1.5 / 1.75 |
|||
| Axle Type | Solid / Hollow / Lite and hollow | |||
| Washer Material | Aluminum | Stainless Steel | Brass | |
| Washer Syntace | ✔ | ✔ | ✖ | ✔ |
| Backup Socket | None Backup Socket / With Backup Socket | |||
| Laser-Engraved | Logo & Information / As Required | |||
| Alloy Finish | Anodized black / As Required | |||
| Switch Compatible | Yes | |||
| Weight (g) | 28g + up ( Lite and hollow 170mm) | |||
Axle Type Option
Lite and hollow
Hollow
Solid
Backup Socket Option
A secondary hex key pattern is machined into the threaded end of the axle for emergency extraction. If the primary interface becomes damaged, the axle can still be removed via hex key from the adjacent side, ensuring removal from the bike.
